Understanding Coalescing Filter Operation

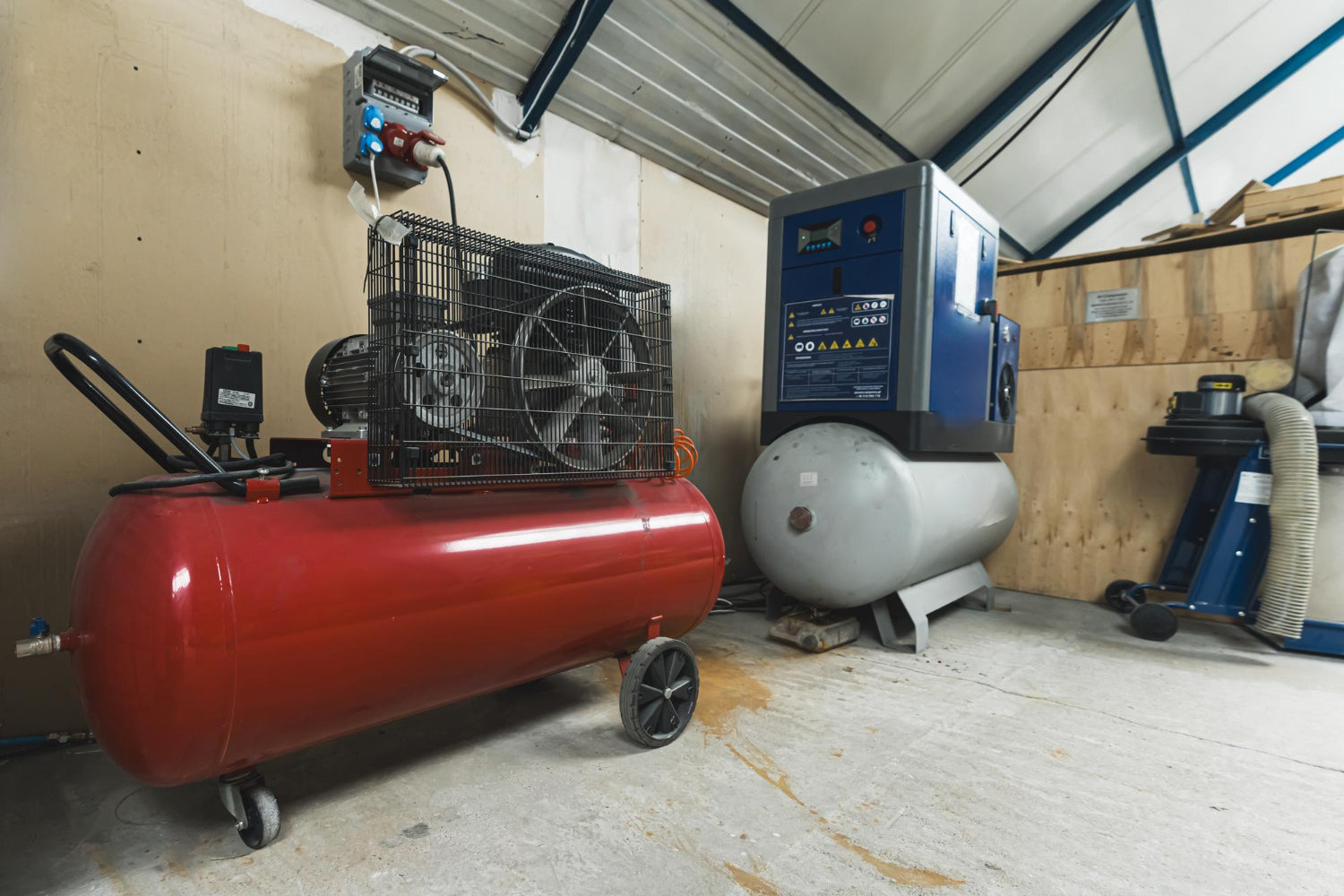

Air compressors are used in all kinds of industrial settings, and keeping them running smoothly depends on more than just regular oil changes or basic filter swaps. One of the most overlooked parts of this system is the coalescing filter. Though small in size, this filter plays a big role in keeping your compressed air clean and equipment safe.

When your air system has particles, oil mist, and moisture floating through it, it doesn't take long before problems show up like rust, wear, or product contamination. That’s where a coalescing filter comes in. It acts as a barrier between those tiny pollutants and your equipment, helping to prevent damage, reduce system wear, and keep your compressed air clean enough for even sensitive uses like food production or paint spraying.

What Is A Coalescing Filter?

A coalescing filter is designed to remove very fine contaminants from compressed air, especially oil aerosols, moisture, and even tiny solid particles. The word "coalesce" means to come together. That’s exactly what this filter does. It traps small droplets in the air and forces them to form larger droplets. Once that happens, the larger droplets become heavy and drop out of the airflow where they’re collected and drained away.

These filters are important for systems where clean, dry air matters. Without one, oil and water vapor can move downstream into tools, regulators, valves, or even final products. Over time, this can cause damage, reduce quality, or force more frequent maintenance.

There are a few different types of coalescing filters to choose from:

- Standard coalescing filters: Good for removing oil, water, and fine particles from compressed air
- High-performance versions: Come with more advanced media for capturing even smaller contaminants
- Activated carbon versions: Often added after a coalescing filter to remove odors and vapors. These are useful for applications where clean air isn't just about purity but also about smell or taste, like in food or pharmaceutical settings

How Does A Coalescing Filter Work?

Unlike a basic dust or particulate filter, a coalescing filter is designed to target particles you can’t even see. The process starts when compressed air flows into the filter housing. As the air passes through a dense layer of media, usually made of fiberglass or a synthetic fiber, the small droplets of oil and water get caught in the fibers. But they don’t stay tiny. As more droplets gather, they merge into bigger drops. That process is called coalescing.

Here’s what happens step-by-step:

1. Contaminated air enters the filter: The air might contain a mix of oil mist, water vapor, and fine dust
2. Air passes through the media: The tight filter fibers trap aerosols and small particles
3. Droplets combine and grow: Multiple tiny droplets stick to the fibers and blend together into bigger drops
4. Gravity takes over: Those heavier drops fall to the bottom of the filter housing and are drained away
5. Clean air exits the filter: At this point, most oil and water aerosols, and extremely fine particles are gone

One thing that sets a coalescing filter apart from other filter types is that it works better under higher pressure. Unlike a regular filter, it doesn’t just collect stuff until it clogs. The compressed air itself helps squeeze the aerosols into the filter media, making the filter more efficient as pressure increases.

Proper installation also matters. Coalescing filters need to be installed vertically so the collected liquid can drain properly. They also work best when placed as close to the point of use as possible, especially in setups where dry, clean air is critical.

Understanding this process helps explain why picking the right filter and maintaining it well can make such a big difference over time. Whether your system runs tools on a shop floor or delivers clean air in a lab, these filters keep things running cleaner and longer.

Common Applications of Coalescing Filters

Coalescing filters are used across many industries to ensure air systems remain free from unwanted contaminants. Manufacturing plants are a prime example, where clean air is necessary to maintaining the integrity of products like electronics or pharmaceuticals. Oil mist or tiny particles can compromise quality, especially in delicate processes. Similarly, in the automotive industry, paint job perfection relies on pristine air, free from moisture or oil, to prevent defects in the finish.

Beyond manufacturing, healthcare facilities also benefit from these filters, ensuring that compressed air used in medical devices or labs is pure. The food and beverage industry likewise depends on clean, dry air to keep their products safe and up to standard. As a result, businesses in these sectors find coalescing filters helpful for both maintaining equipment and meeting strict regulatory requirements.

Maintenance and Care for Coalescing Filters

Taking care of your coalescing filter is key to its performance and longevity. Regular maintenance ensures you're getting the best performance. Start by checking the filter's condition periodically. A visual inspection helps spot any obvious issues or wear. If airflow seems restricted, it might be time for a replacement or a thorough cleaning, depending on the model.

Here are some routine steps to keep your filter in top shape:

- Inspect weekly: Check for any damage or blockages that might affect performance
- Monitor pressure drop: A significant change might signal the filter needs attention
- Replace timely: Swap out the filter according to the manufacturer's recommendations for consistent performance
- Drain liquids: Make sure any accumulated liquids are removed often to avoid overflow

A well-maintained filter not only extends the life of your equipment but also helps keep air quality strong, saving the hassle and cost of repairs. Being proactive also reduces risks related to equipment downtime.

Choose the Right Coalescing Filter for Your Air Compressor

Selecting the right coalescing filter means thinking through the specific needs of your compressor system. Air quality needs vary depending on the industry and type of work. For operations needing especially clean air, like those in pharmaceuticals or food processing, high-performance filters may be the right choice.

Here are some factors to guide your decision:

1. Understand your needs: Know what contaminants you're targeting. Is it mostly oil mist or do you need to handle vapors and odors too?
2. Check compatibility: Make sure the filter fits your system. Not every filter is right for every compressor size or type
3. Evaluate efficiency: Look into the filter's coalescing efficiency and pressure drop. You want one that balances strong filtering with energy use
4. Consider environment: Think about things like temperature, humidity, and how often your system runs, as these can affect filter selection

Making an informed choice saves unnecessary costs and keeps your operations running without interruption. The right coalescing filter can go a long way in extending the life of your compressor system and protecting your equipment.

Keep Your Compressors Running Smoothly

Staying on top of compressor maintenance and choosing the right equipment helps you run without delays or extra repairs. By relying on coalescing filters, you're investing in cleaner air and a longer life for your machinery. Their role in keeping air systems free of moisture and oil helps improve productivity and create safer workspaces, which means fewer interruptions and less downtime.

Every part of your compressor setup matters. Taking the time to select and maintain coalescing filters today can help avoid costly surprises tomorrow. Keeping your system running smoothly starts with the right filter and regular attention.
